BK222TUL – Medium Condensate Removal Pump w/Safety Switch & Tubing, 230V, 22 Ft Max Lift

BK222TUL

BK222TUL – Medium Condensate Removal Pump w/Safety Switch & Tubing, 230V, 22 Ft Max Lift

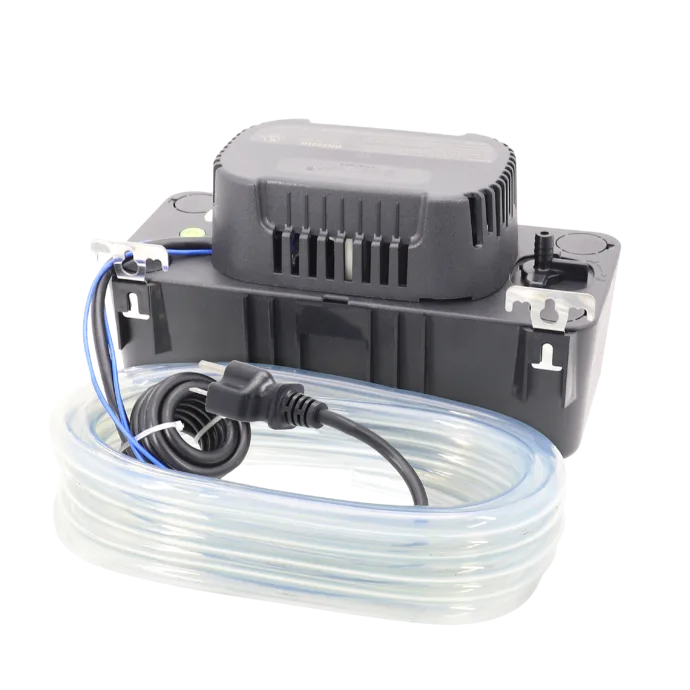

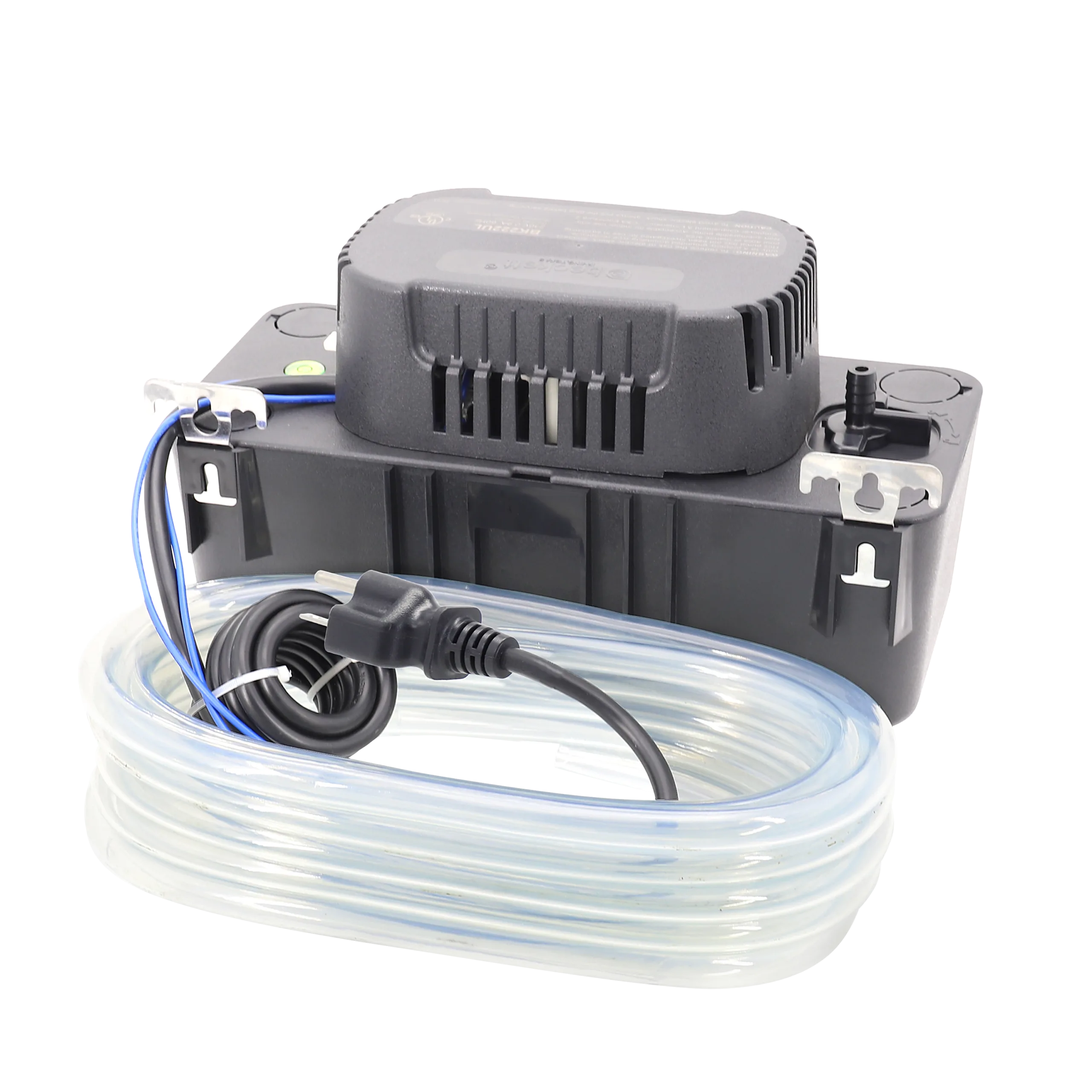

The BK222TUL medium condensate removal pump is known for its reliable design, including a 3-year warranty and reduced noise level during operation. New features for easy installation include a lid-mounted bullseye level, stainless steel mounting tabs, a lift-to-test tab, and a 3/8″ barb check valve that can be serviced without tools or removing the hose. Rated for condensate water up to 150° F and high-efficiency gas furnaces. Automatic start/stop operation with a thermally protected motor. A new larger 2.5-quart capacity tank means more water pumped out per cycle, so the pump runs less often and lasts longer.

BK222TUL – Medium Condensate Removal Pump w/Safety Switch & Tubing, 230V, 22 Ft Max Lift

Product Description

  • 230V, 60Hz, 77 Watts
  • Shutoff/Max lift: 22 ft
  • Flow 156 GPH @ 1 ft
  • 3-year warranty
  • Safety switch is included
  • Easy install: Bullseye level, twist lock check valve, lift to test tab, multi-slot mounting brackets
  • 4 inlet holes
  • Outlet O.D. 3/8″ barb
  • Larger 2.5 quart tank capacity allows more water pumped out per cycle
  • Includes 20 ft. of 3/8" ID PVC tubing
  • Replaces CB202UL
BK222TUL – Medium Condensate Removal Pump w/Safety Switch & Tubing, 230V, 22 Ft Max Lift

Product Specifications

ApplicationCondensate (HVAC)
Condensate TypePump - Best Sellers
Pump SizeMedium
Shutoff/Max Lift (ft)22 Ft
Voltage230
Flow GPH @ 1 ft156
Tank Size2.5 qt.
Plenum RatedNo
Max Water Rating (°F)150 F
Safety SwitchYes
Discharge Size3/8" Barbed
Item Height (In)6.6 In
Item Length (In)11.2 In
Item Width (In)5.2 In
